Flexible and Durable Snap - on Conveyor Chain for Customized Automation Solutions
Snap-on Conveyor Chain
We provide professional Snap-on Conveyor Chain, support the conveying of various types , and provide a variety of conveying types.
The Snap-on Conveyor Chain is a high-performance conveyor system designed for applications requiring high-speed转弯 and substantial tensile strength. This chain is engineered to meet the rigorous demands of industries that rely on automation for fast and reliable material handling.
*High-Strength and Wear-Resistant: The POM chain plates and stainless steel base provide the necessary strength and durability for high-stress conveyor applications.
*Standard Roller Chain Design: Ensures stable and reliable transportation capabilities suitable for both straight and curved conveyor systems.
*High Conveying Speed: Capable of reaching speeds up to 80 meters per minute with lubrication, making it ideal for high-efficiency operations.
*Substantial Load Capacity: With a maximum working load of 1200N for stainless steel, it is well-suited for heavy-duty conveying tasks.
*Low Maintenance: The simple structure of the Snap-on Conveyor Chain facilitates easy maintenance and replacement, reducing downtime and maintenance costs.
*Temperature Resistance: The POM material ensures the chain's performance remains consistent across a wide temperature range, from -40°C to +90°C.
*Efficiency: The high speed and load capacity of the Snap-on Conveyor Chain contribute to increased production efficiency.
*Reliability: The durable materials and design ensure consistent performance, even in demanding conditions.
*Versatility: Adaptable to various conveyor configurations, including straight, curved, and spiral systems, to meet the needs of diverse production lines.
PRODUCT SPECIFICATIONS
*Belt Material: Polyoxymethylene (POM), coffee-colored for easy visual inspection, with a temperature range of -30°C to +90°C.
*Base Chain: 08A roller chain made from stainless steel 304 for superior corrosion resistance.
*Maximum Speed: 50 meters per minute with lubricant; 30 meters per minute with dry conditions.
*Maximum Working Load (25°C): 1200N for stainless steel.
*Packaging: Supplied in lengths of 1.524 meters per piece for convenient handling and storage.

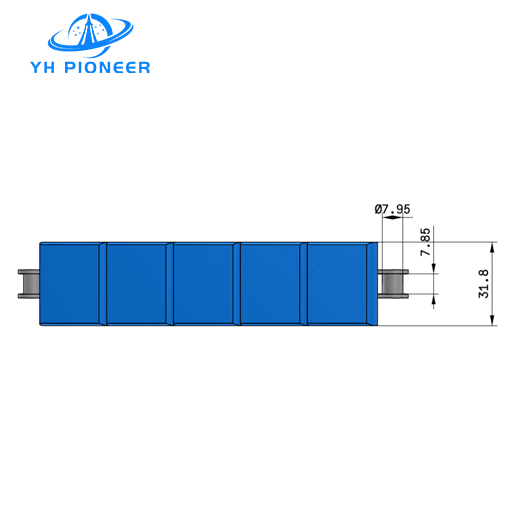

*Width: 31.8 mm.
*Weight: 0.74 kg/m.
*Reverse Bending Radius: 100 mm.
*Minimum Turning Center Radius: R320 mm.
PRODUCT MATERIALS
*Chain Plates: Made from POM, a high-strength engineering plastic that offers excellent wear resistance and low friction.
*Base Chain: Constructed with stainless steel 304, providing high strength, durability, and resistance to corrosive environments.
PRODUCT APPLICATIONS
*Food Processing: For the reliable and hygienic transport of food products.
*Beverage Industry: Suitable for high-speed bottling and canning lines where cleanliness and efficiency are crucial.
*Cosmetics: Ideal for the automated packaging of cosmetic products, ensuring a clean and efficient process.
*Pharmaceuticals: Ensures the safe and accurate handling of pharmaceutical products in an environment that demands high standards of cleanliness and precision.
PRODUCT PARAMENTERS
| Application | Mainly suitable for high-speed or high pulling conveyor. |
| MMaterial | POM, color brown, operating temperature -30°C~+90°C. |
| Base Chain | 304 stainless steel 08A roller chain |
| Maximum speed | 50 m/min lubricant ; 30 m/min dry |
| Maximum working load (25°C) | Stainless steel is 1200N |
| Package | Each length is 1.524M |
| Width | 31.8 mm |
| Weight | 0.74 kg/m |
| Opposite bending raduis | 100 mm |
| Minimum turning center radius | R320 mm |
*It can be modified according to customer requirements.
Please contact us for the latest specification stock and quotation
|
|
